Training Resources

Training Resources



SEMINAR: SIGNIFICANT STRUCTURAL CHANGES IN THE 2019 CBC/2018 IBC

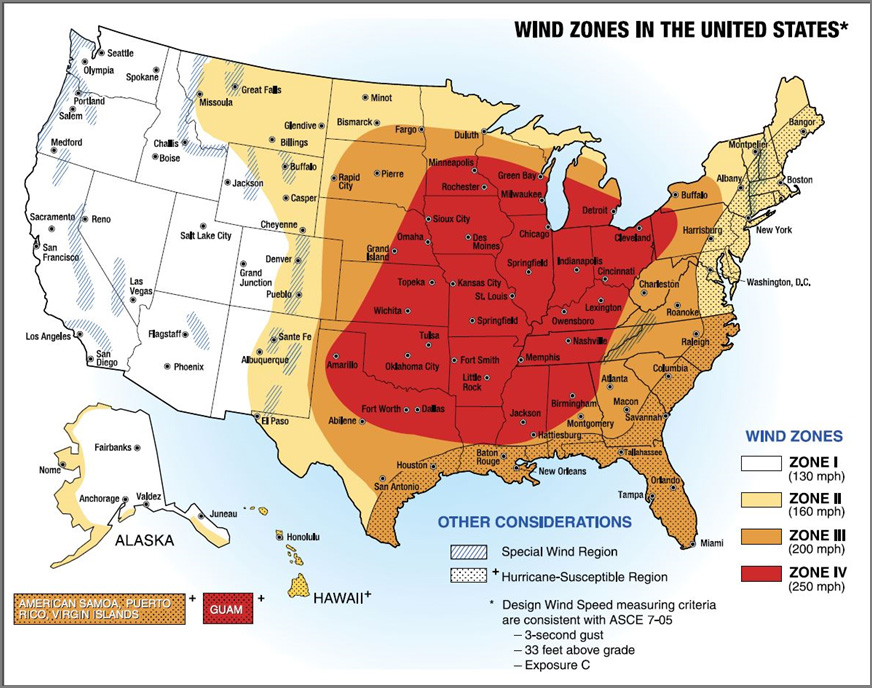

1. ICC 500 Figure 304.2(1): Shelter Design Wind Speeds for Tornadoes

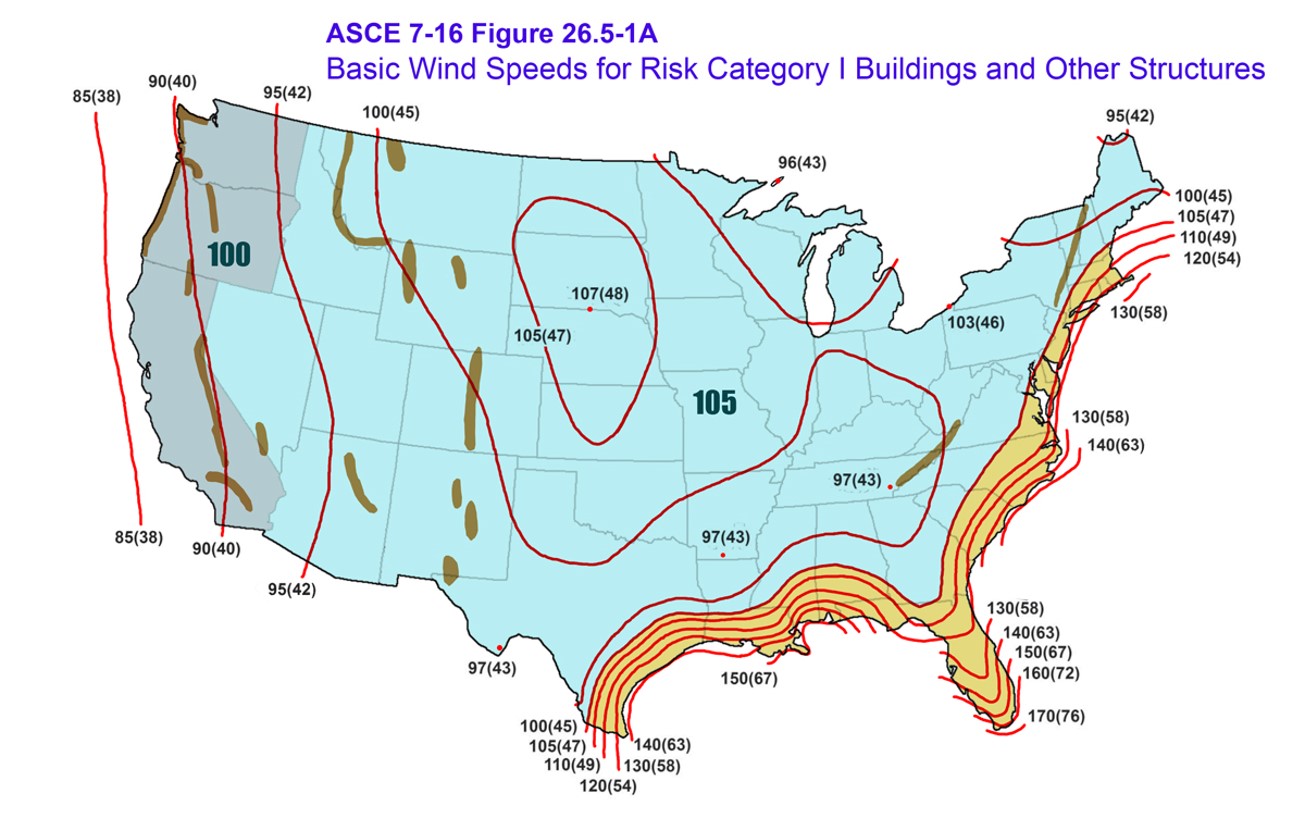

2. Design Wind Speed Map for RC I Buildings

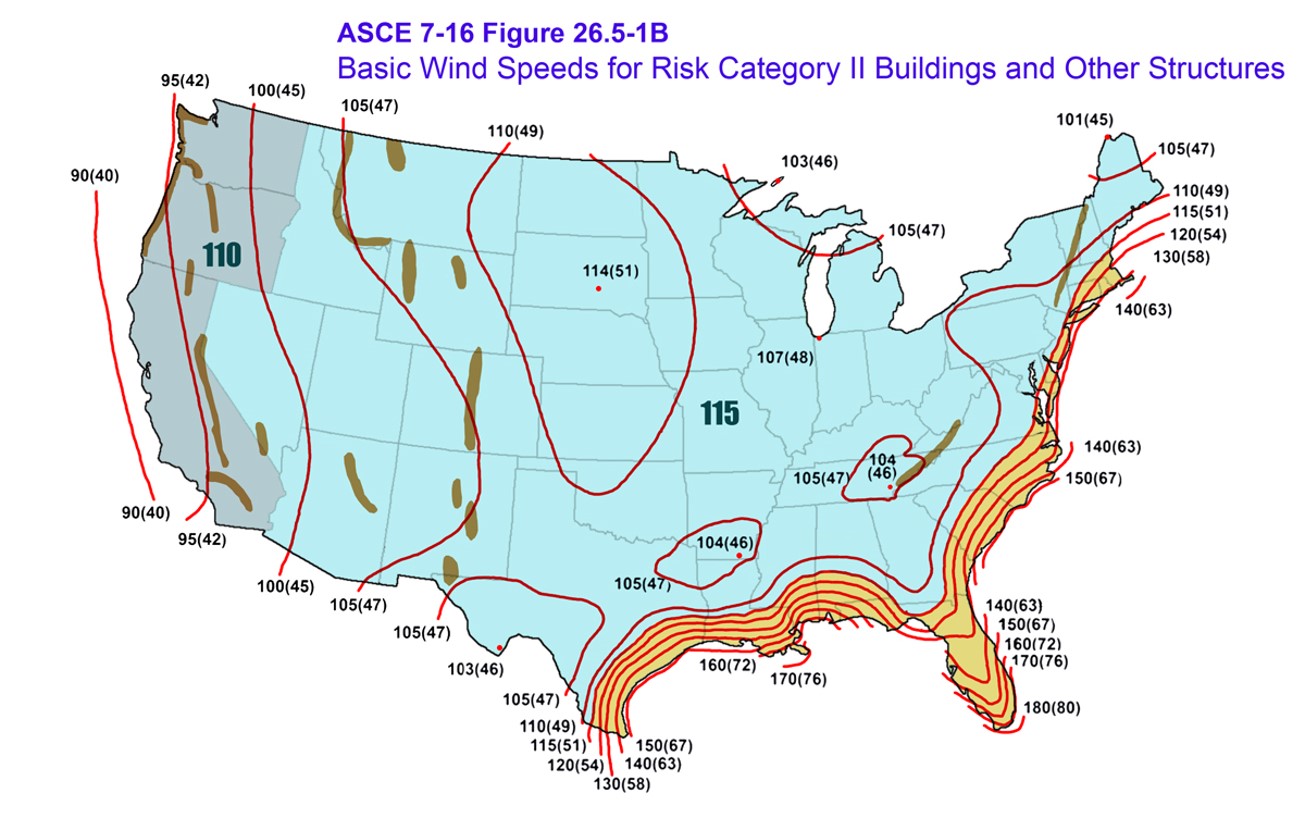

3. Design Wind Speed Map for RC II Buildings

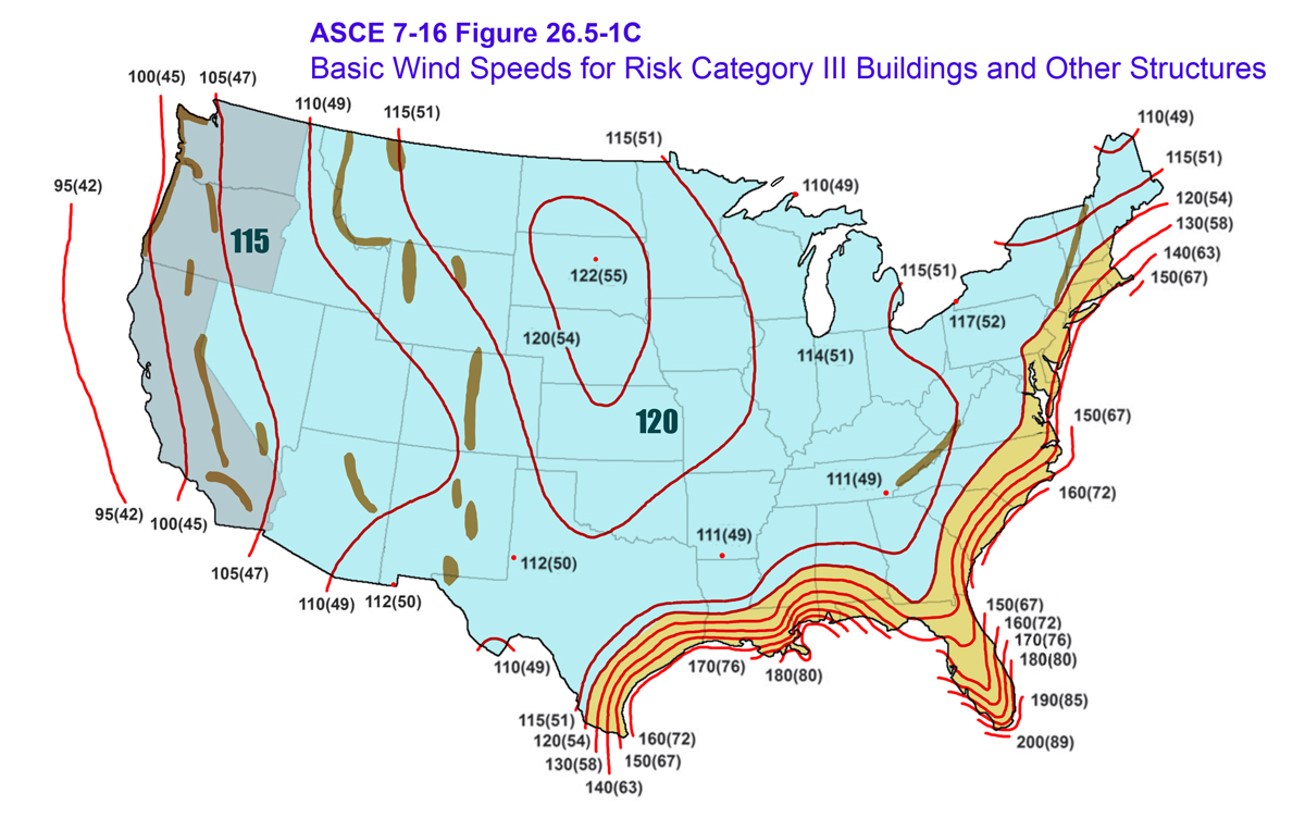

4. Design Wind Speed Map for RC III Buildings

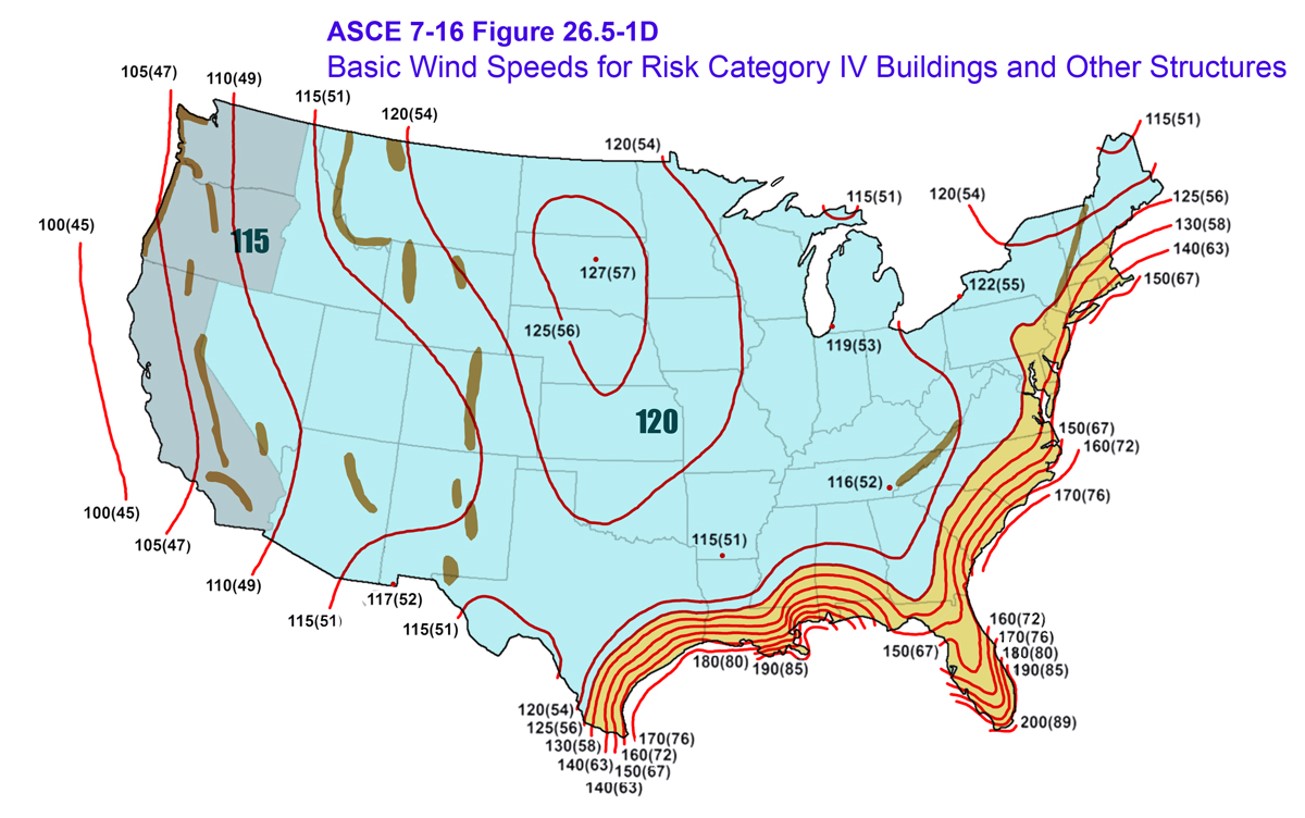

5. Design Wind Speed Map for RC IV Buildings

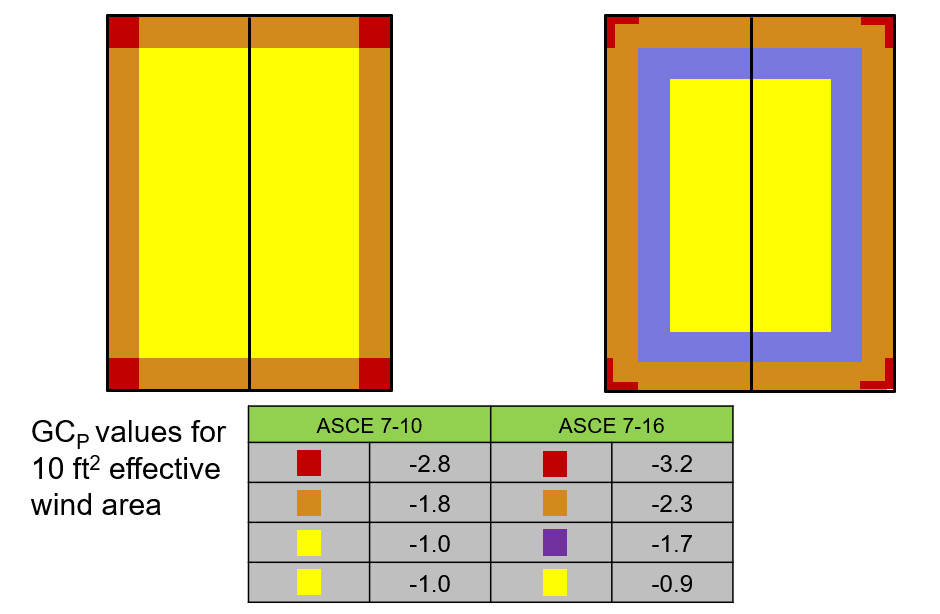

6. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2A and ASCE 7-16 Fig. 30.3-2A (Gable Roof – h < 60 ft, θ ≤ 7°)

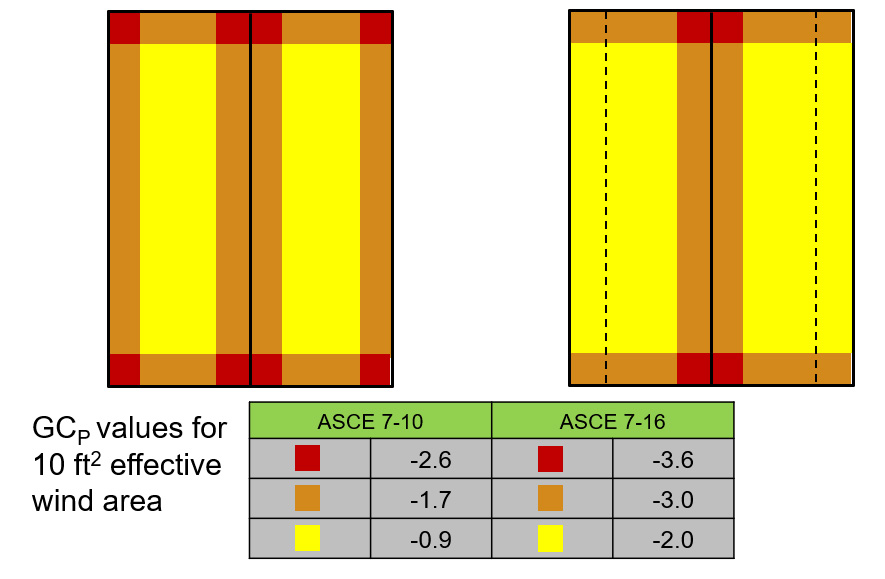

7. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2B and ASCE 7-16 Fig. 30.3-2B (Gable Roof – h < 60 ft, 7° < θ ≤ 20°)

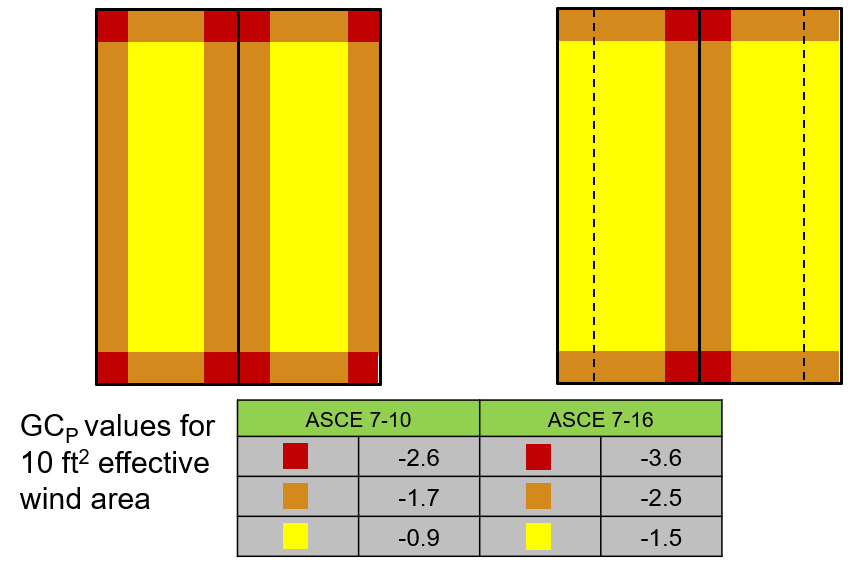

8. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2B and ASCE 7-16 Fig. 30.3-2C (Gable Roof – h < 60 ft, 20° < θ ≤ 27°)

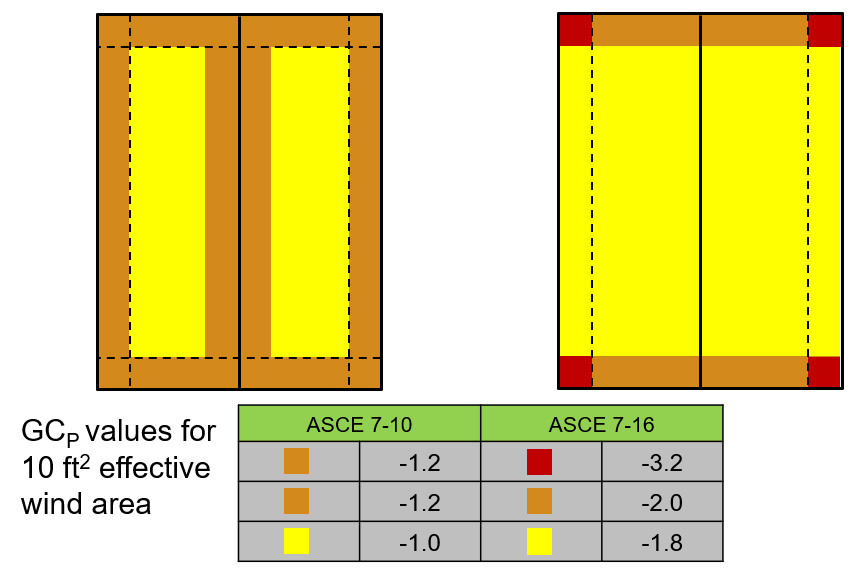

9. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2C and ASCE 7-16 Fig. 30.3-2D (Gable Roof – h < 60 ft, 27° < θ ≤ 45°)

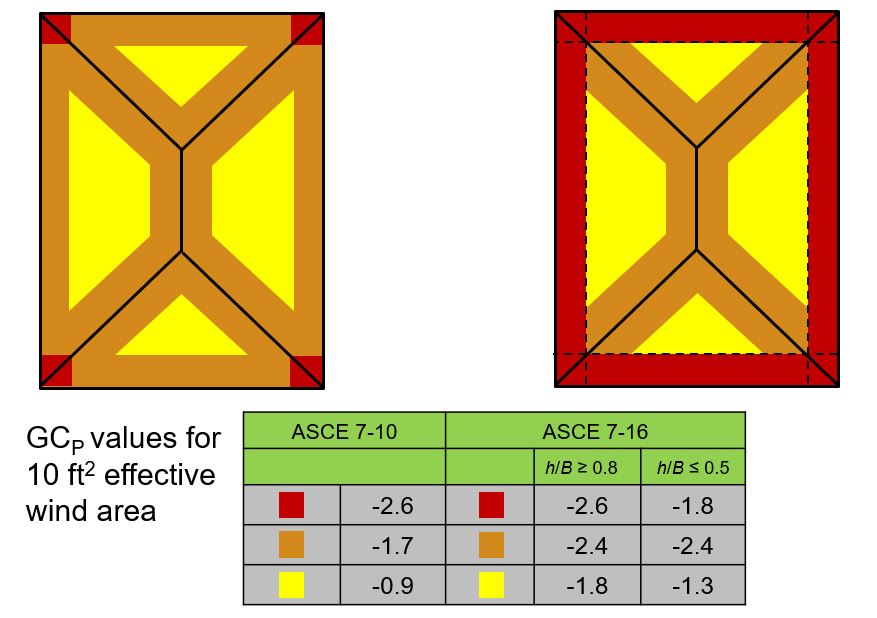

10. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2B and ASCE 7-16 Fig. 30.3-2E (Hip Roof – h < 60 ft, 7° < θ ≤ 20°)

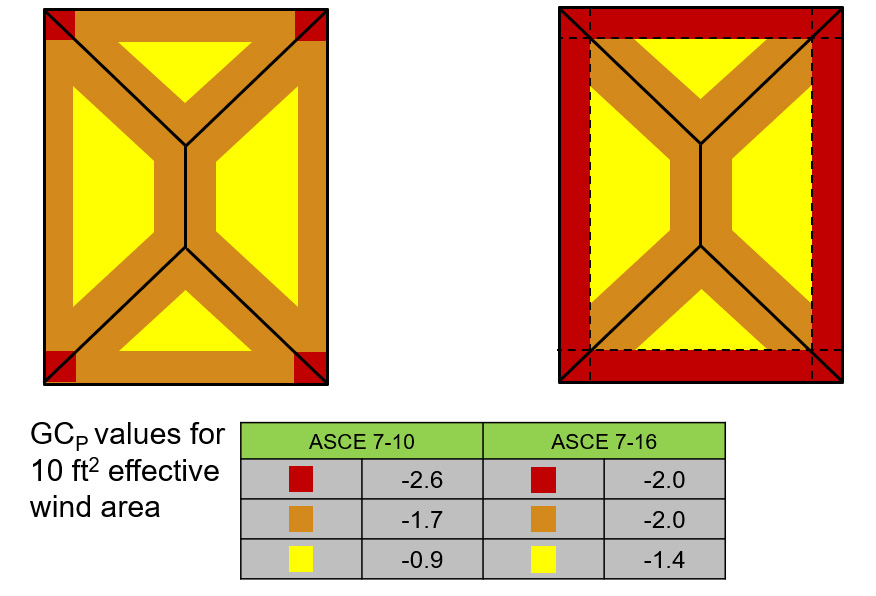

11. Comparison of Roof Zones in ASCE 7-10 Fig. 30.4-2B and ASCE 7-16 Fig. 30.3-2G (Hip Roof – h < 60 ft, 20° < θ ≤ 27°)

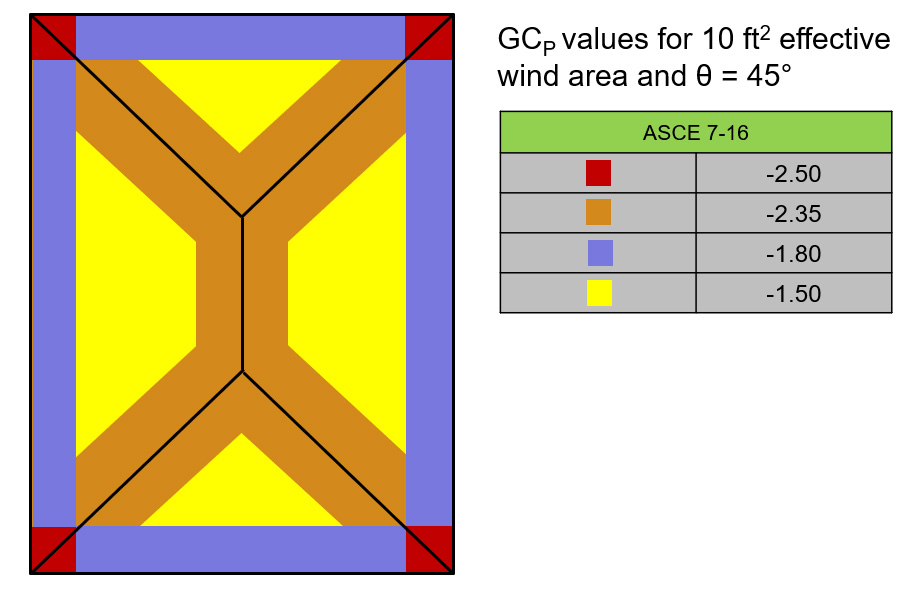

12. Roof Zones in ASCE 7-16 Fig. 30.3-2G (Hip Roof – h < 60 ft, 27° < θ ≤ 45°)

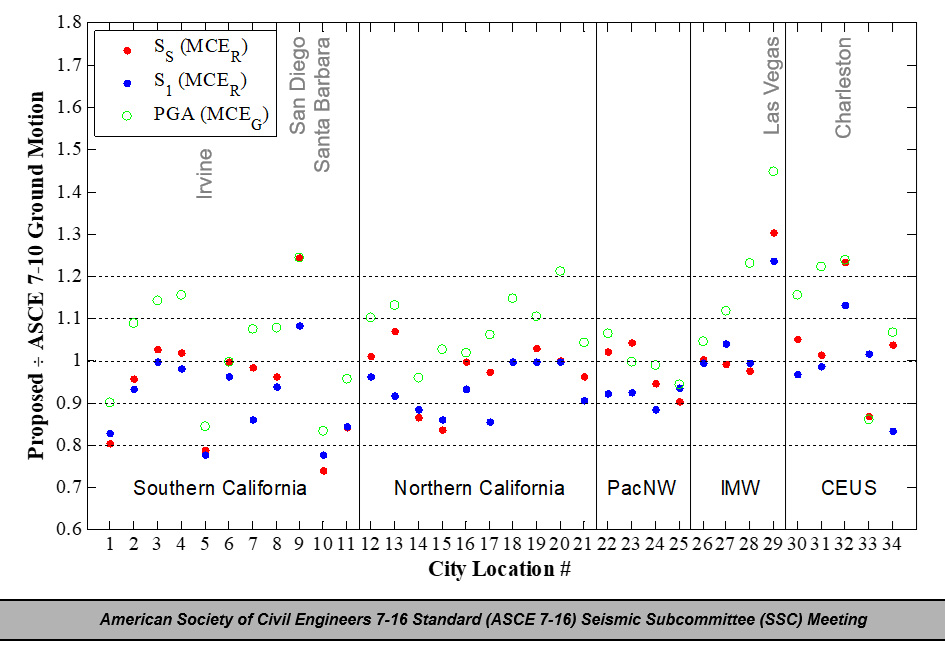

13. Changes in MCER and MCEG Values from ASCE 7-10 to ASCE 7-16

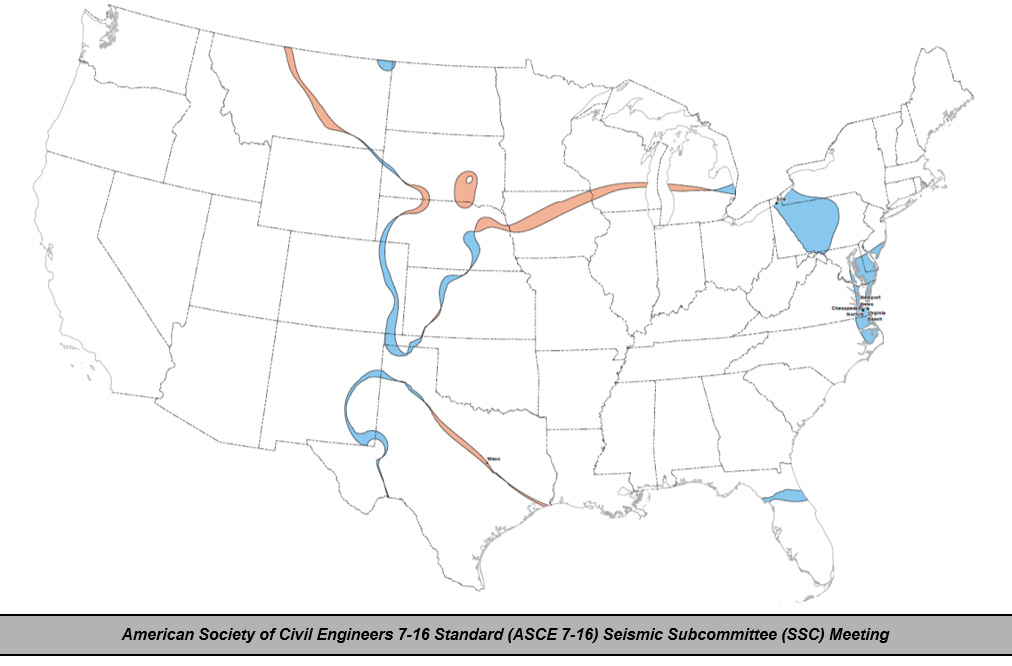

14. Changes in SDC (A to B or B to A) from ASCE 7-10 to ASCE 7-16

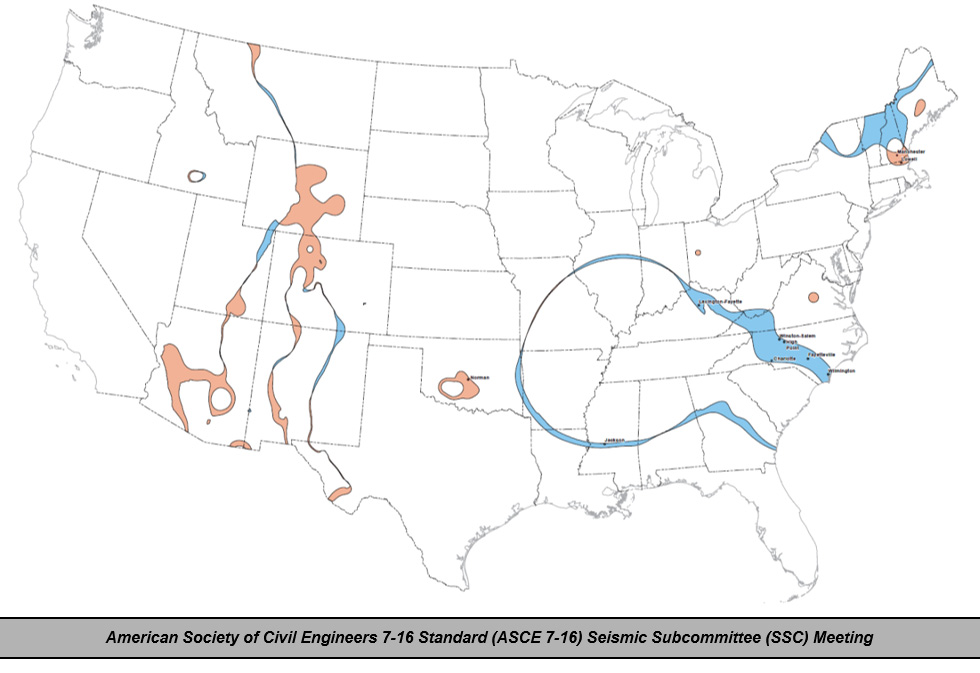

15. Changes in SDC (B to C or C to B) from ASCE 7-10 to ASCE 7-16

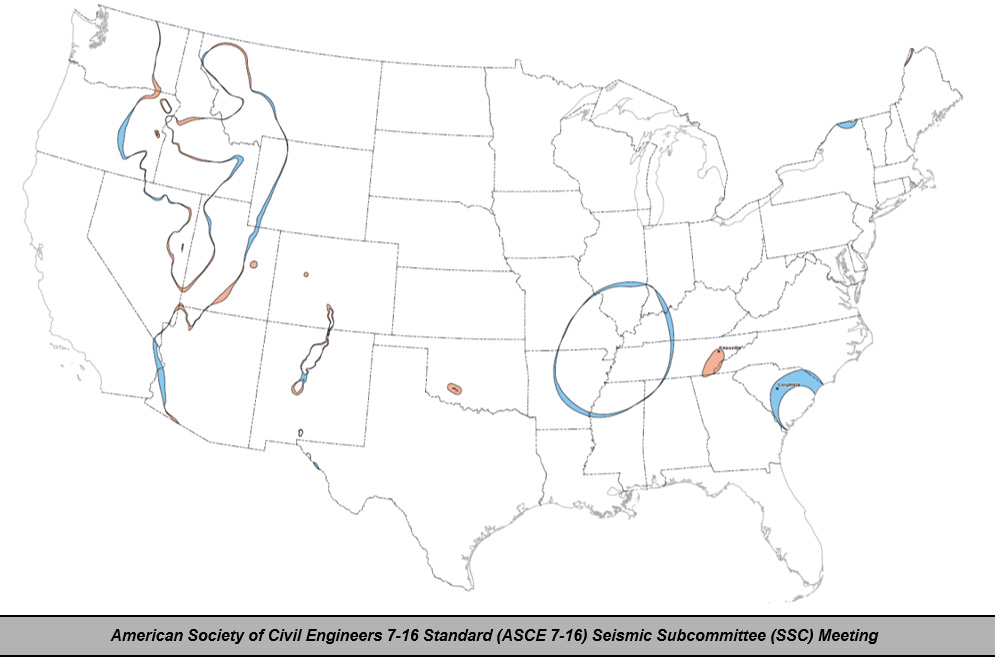

16. Changes in SDC (C to D or D to C) from ASCE 7-10 to ASCE 7-16

17. Changes in SDC (D to E or E to D) from ASCE 7-10 to ASCE 7-16

SEMINAR: SIGNIFICANT CHANGES IN THE 2016 CBC AND ACI 318-14

1. Articles on the Changes in the Design of Concrete Structures:

2. Articles on the Changes in the Design of Masonry Structures:

3. Articles on the Changes in the Design of Wood Structures:

SEMINAR: CHANGES BETWEEN ASCE 7-05 AND ASCE 7-10

1. Changes in the mapped response spectra values for updated source zone model and attenuation relationships:







2. Changes in the mapped response spectra values for updated source zone model, attenuation relationships, and for changing to risk-targeted ground motions [click here to download the technical paper mentioned during the seminar for a detailed discussion on the change from uniform hazard response spectra to risk-targeted response spectra]:







3. Final changes in the mapped response spectra values:
